Madimack News Bulletin

New product updates for the USA market

There’s so much going on at Madimack HQ, we created a bulletin to keep you in the loop.

Check out what’s new, what's updated and, most importantly, what's in it for you.

eliteCLEAR Quad Filter

	MSRP	$1,725
	Availability / Effective	October 2026 (currently in production)
	Why Madimack?	Strengthens our filtration offering and caters to larger pools demanding greater capacity. Expands the eliteCLEAR range beyond the existing 150 and 200 sq ft units with a 430 sq ft commercial-grade option.

Key Features & Benefits

• Ultra Clear Water — 430 sq ft Filtration Area
  Multi-element cartridge design provides an enormous 430 sq ft of surface area for superior dirt capture and water clarity versus traditional sand filters — ideal for larger residential and commercial pools.
• User-Friendly Design
  Detachable grip handle, large-bore air relief valve, smart pressure gauge, and knee-height tank base make cartridge access and routine maintenance straightforward for installers and end users alike.
• Robust, Weather-Resistant Construction
  UV-resistant plastic tank with a cylindrical weatherproof rounded top and 3-in-1 heavy-duty clamp kit ensures fast service access and long-term durability in permanent outdoor installations.
• Eco-Friendly — No Backwashing Required
  Eliminates water waste associated with sand filter backwashing. Cartridge cleaning is all that's needed, saving significant water annually — an important advantage in water-restricted regions.

eliteCLEAR Media Filters

	MSRP	28” = $920	32” = $1,150
	Availability / Effective	October 2026 (currently in production)
	Why Madimack?	Expands the eliteCLEAR range to include both cartridge and media filtration options, giving dealers and consumers a complete filtration solution under one brand. The 28" and 32" models with 2" MPV cater to a wider range of pool sizes across the US market.

Key Features & Benefits

• Two Models – 28" and 32" with 2" MPV
  Available in 28" and 32" tank sizes, both fitted with a 2" Multi-Port Valve for improved flow rates and reduced back pressure. Meets the connection standard expected by US specifiers and installers.
• 6-Position Multiport Valve
  Full-featured 6-position MPV — Filter, Backwash, Rinse, Waste, Recirculate, and Closed — provides complete operational flexibility for installers and service technicians.
• Premium Fiberglass Construction
  Tank constructed from polyester resin with non-corrosive fiberglass filament winding for long-term structural integrity. UV-resistant surface is suitable for permanent outdoor installation in all US climates.
• High-Pressure Operating Specifications
  Standard configuration rated to max 36 psi (2.5 kg/cm²). Optional high-pressure configuration available rated to 58 psi (4.0 kg/cm²) — both rated to max operating temperature of 122°F / 50°C.
• All-PVC Internal Components
  All internal components are injection-molded PVC — non-corrosive, chemically resistant, and built to withstand the demands of continuous pool filtration without degradation.

inverFLOW Pump

	MSRP	Same as v1 = no change
	Availability / Effective	August 2026 (currently in production)
	Why Madimack?	Directly supersedes the inverFLOW PLUS across all three HP sizes. Model numbers (21101, 21102, 21103) are retired and replaced by M (21111, 21112, 21113). Delivers a more robust pump with a significantly improved controller, better automation compatibility, and a cleaner installer experience.

Key Features & Benefits

• Dual Voltage — No Electrical Reconfiguration Required
  Dual voltage capability eliminates the need for electrical reconfiguration on retrofit installations. The footprint supports direct base installation and drop-in replacement across major USA pool pump brands including Hayward, Pentair, and Jandy.
• Compatible with Major Automation Systems
  Full compatibility with pool automation systems. 15m comms cable included in the box for straightforward integration with existing pool automation setups.
• New & Improved Controller
  Redesigned controller features an improved display showing more information and functions, a dedicated Menu button eliminating the confusion of holding two buttons to access parameters, and a 1x relay with independent timer function that can also be synced to pump on/off.
• Easy Conduit Connections
  Controller features multiple NPT threaded options for easy and flexible conduit connections — reducing installation time and simplifying compliance with US electrical standards.
• Direct V1 Replacement — SKU Mapping
  Clean model-for-model replacement: V1 SKU 21101 → M SKU 21111 · 21102 → 21112 · 21103 → 21113.

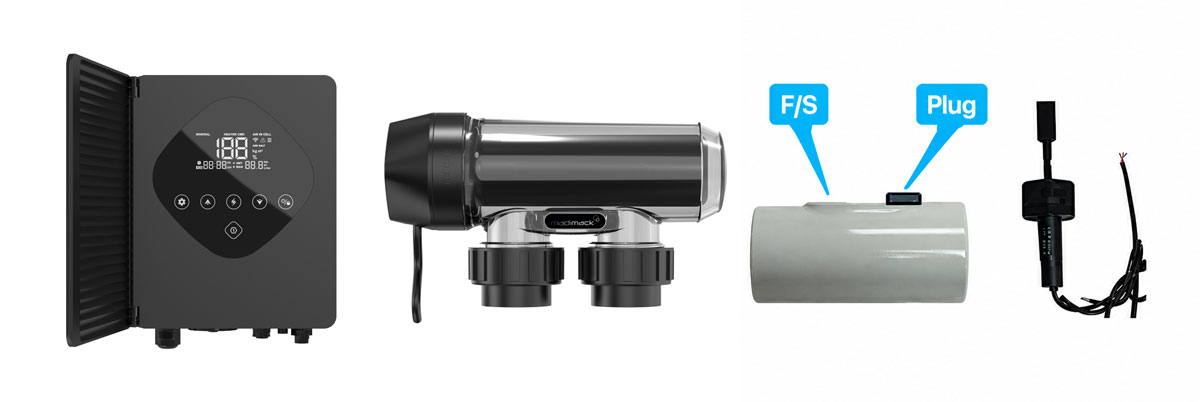

inverCHLOR

	MSRP	Same as v1 = no change
	Availability / Effective	October
	Why Madimack?	Re-aligning the inverCHLOR offering to correctly match pool sizing based on chlorinator output. Updated model naming and SKUs ensure customers and dealers are selecting the right unit for their pool volume, reducing under-specification in the field.

Key Updates & Sizing

Increased SKU highlighted; below table shows previous 3 x model offering.

• inverCHLOR now comes with a Flow-switch + Tee
  Flow-switch is the primary safety cutoff for loss of flow.
  Air sensor is the secondary safety for flow loss.
  Customers can purchase a FS then OTA and enable the feature in the maintenance menu.
  (Note: The Acid feeder no longer comes with the tee)
• Power Cable Upgrades
  Power Supply to the controller is 9ft
  Power supply to the cell is 9ft
• Timer Logic Upgrade
  Timers can now overlap past midnight.
  If either timer is active the system is active. Both timers must be ‘off’ for the inverCHLOR to be in standby mode.
• Input Modes updated
  1. Heat Demand – Currently exists to allows pump output without chlorine production
  2. Cover/ Spa Mode – Reduces the current output setting by 80% to minimize over chlorination when the cover is on or on smaller bodies of water
  3. Automation Control – Manual Override for Automation input
  Note: These modes use the same 2pin input and the mode is selected in the maintenance menu
• Acid Dosing Logic Upgrade
  Acid Dosing can now be selected as either;
  • Standard Algorithm, where users set the daily amount, OR
  • Smart Algorithm (ALG)
• Standard Algorithm Mode (AUT or MAN)
  • AUT mode (using schedule): The daily amount is divided by the ‘on’ time in the schedules and dosed to achieve the volume within the timers.
  • MAN mode (always on): The daily amount is scaled over the 24hrs so that the amount dosed per hour is high at the start of each day compared to the last hours of each day. (This supports automation system control better)
• Smart Algorithm Mode (ALG)
  • Uses a formula based on the % output, salinity, operating time and temperature to dose the average amount to offset the pH increase created from electrolysis.
  • Note - Adding chlorine to water increases the pH level. This mode is designed to offset the increase by dosing hydrochloric acid.
  • The acid must be mixed with water 1:1 ratio.
  • There is an adjustable scale from -3 to 3 to decrease or increase dose amount to suit site specific requirements. E.g. lots of aeration also increases pH.
