HIGH FLOW SINGLE ELEMENT CARTRIDGE FILTER DELIVERING SPARKLING CLEAR WATER

Built for durability and efficiency, the Madimack EliteClear high flow, single-element cartridge Filter is designed with high-strength, UV-resistant materials to extend its lifespan. Its compact, low-profile design makes it ideal for pools with limited space, while the advanced filtration system ensures superior dirt-catching capability for consistently crystal-clear water.

  • icon-handle

    Easy-grip lid handle

    for effortless maintenance

  • icon-cartridge-element

    Large one-piece cartridge element

    greater filtration surface for trapping more dirt and debris, reducing cleaning needs and eliminating backwashing, saving water and chemicals

  • icon-latch

    Locking ring with quick-release latch

    quick and easy access for maintenance

  • icon-high-flow

    High flow, single element

    cartridge filter for sparkling clear water

  • icon-water-drain

    Large water drain

    enables fast and simple winterization

  • icon-cleaning

    Easy cleaning

    just rinse with a garden hose

  • icon-gauge

    Indicative pressure gauge

    shows when servicing is needed

Madimack - Find Out More

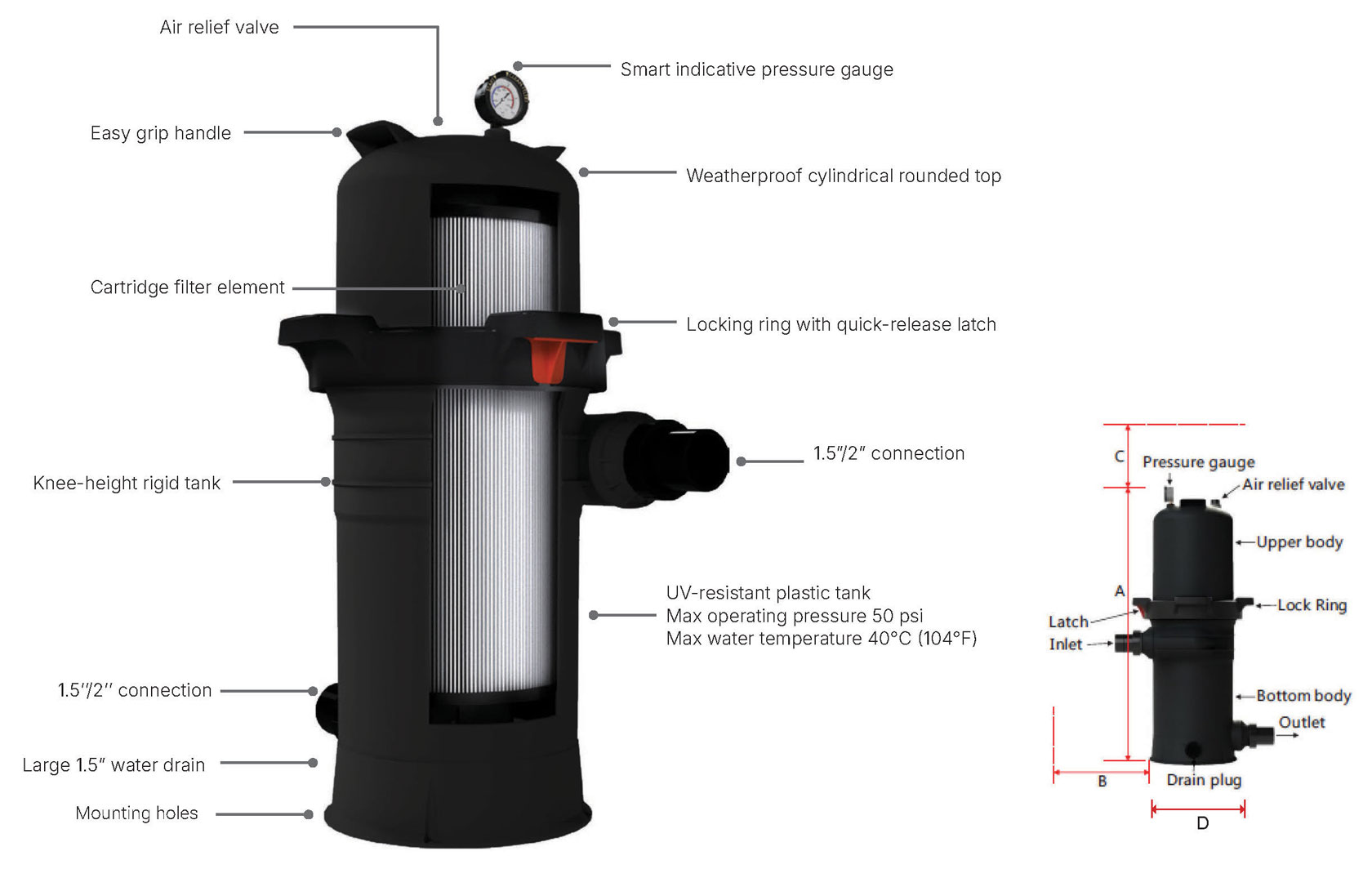

EliteCLEAR Cartridge Filter specs

Model A REQUIRED CLEARANCE
“B” Sides “C” Above “D”
IN CM IN CM IN CM IN CM
eliteCLEAR Cartridge Filter 150 36 91.2 18.3 46.4 11.8 30 18.30 46.40
eliteCLEAR Cartridge Filter 200 40.7 103.4 18.3 46.4 11.8 30 18.30 46.40
Model FILTER AREA MAX FLOW RATE MAX OPERATING PRESSURE
FT2 M2 GPM LPM M3/H PSI kPa
Single-Element Cartridge Filter 150 150 13.94 120 455 27.2 50 345
Single-Element Cartridge Filter 200 200 18.58 120 455 27.2 50 345
