The smart choice for total pool performance.

hero-inverFlow-w-badges-na

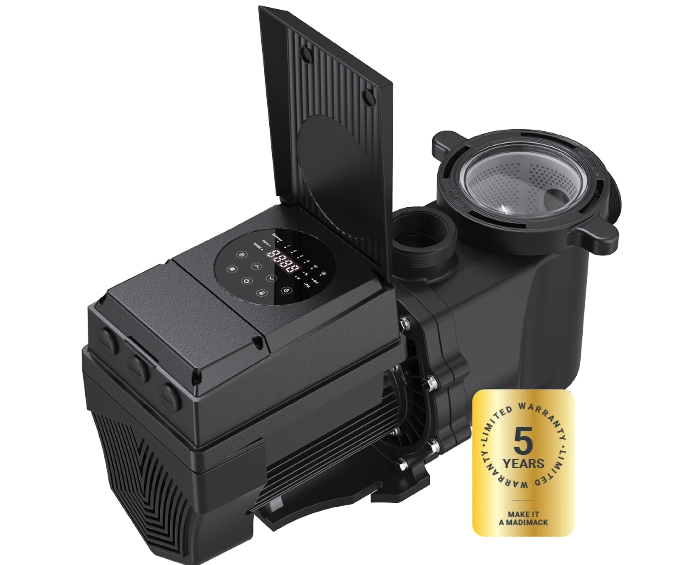

The Madimack inverFLOW inverter pool pump represents the complete package in pool pump technology. Combining whisper-quiet operation, exceptional energy efficiency and intelligent smart controls, backed by a market-leading 5-year warranty, it’s the smart choice for reliable, energy-efficient pool performance.

Engineered for seamless integration with existing plumbing, the inverFLOW is quick to install, simple to replace and built to perform.

  • icon-smart-control

    Smarter Pool Control

    Enhanced interface with easy menu access and expanded display

  • icon-sound

    Advanced Sound Suppression Technology

    Whisper-quiet operation down to 33 dB

  • icon-monitor

    Active Energy Monitor

    Monitor and manage operation efficiency

  • icon-dual-voltage

    Dual Voltage

    Enabling flexible installation and increased performance

  • icon-timer

    Advanced Timer Function

    Full control capabilities, with multi-speed and multi-timer function

  • icon-5-yrs-warranty

    5-Year Market-Leading Warranty

    Long-term peace of mind and product reliability

  • icon-wifi

    Wi-Fi Enabled + App Control

    Remote operation, scheduling and monitoring from your phone

  • icon-output

    Single Relay Output

    Operate auxiliary equipment on pump-synced or independent timers

Contact a local authorized Madimack dealer to find out more on the inverFLOW

Fill out our contact form and a member of our dealer support team will reach out to you shortly!
Model Name inverFLOW M100 1HP inverFLOW M150 1.5HP inverFLOW M200 2HP
Power
Voltage range 115 - 230v 50/60Hz
Input Power P1 (HP) 1 1.5 2
Input Power P1 (kW) 0.8 1.1 1.5
Running Amps (115v/230v) 7.0 - 3.5 8.3 - 4.6 9.6 - 6.5
Circulation (Flow)
Max Flow (Qmax) (GPM) 97 110 132
(LPM) 367 415 500
Head Max (Hmax) (Feet) 54 59 67
(Metre) 16.5 18 20.5
Flow @ 26Ft/8m 79/299 99/375 132/ 500
Flow @ 33Ft/10m 68/258 84/318 121/458
Specifications
Pipe connections (inlet/outlet) 2.0" / 50 mm
Noise level 30% Speed dB(A) 32.9 35.8 38.3
Noise level 100% Speed dB(A) 56.1 56.7 57.4
Dimensions (inch) 23" 5/8' × 9" 15/16' × 12" 11/16'
(mm) 600 × 253 × 322
Packaging (inch) 25" 7/8' × 10" 5/8' × 15" 9/16'
(mm) 657 x 270 x 395
Net Weight (lbs/kgs) 33.5lbs/15.2kgs 35.7lbs/16.2kgs 34.8lbs/15.8kgs
Gross Weight (lbs/kgs) 39.2lbs/17.8kgs 41.4lbs/18.8kgs 40.5lbs/18.4kgs

*Specifications displayed refer to 230v supply and can vary with voltage fluctuations please visit www.madimack.com for further specifications.
