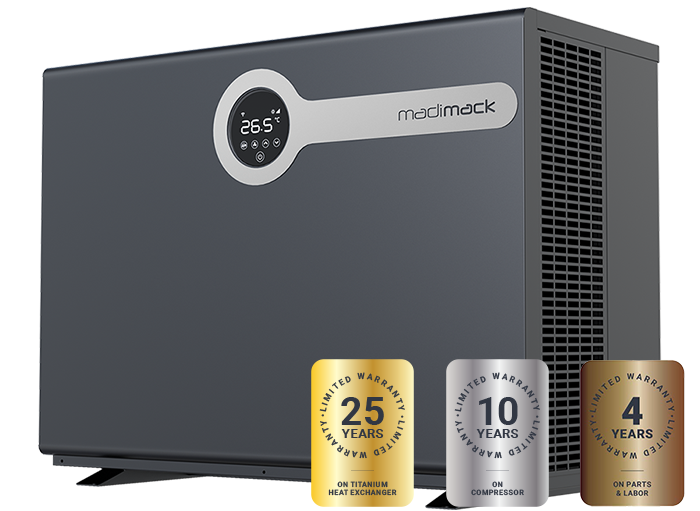

Ultimate pool heating efficiency and performance.

Become a Dealer
InverElite-US-rating

InverMAC Technology

Madimack’s enhanced inverter technology, InverMAC, is engineered to support inverter motor operation. The inclusion of product specific proprietary technology allows for precise control of motor speed and energy usage across our range. InverMAC technology supports Madimack’s overall position of unrivalled innovation, sustainability and performance. By incorporating inverter motor technology in creative and unique ways, Madimack is leading the way in the development of energy-efficient products.

  • airflow-system

    Backward Airflow System

    It draws air from both sides and blows out from the back side evenly. With innovative backward airflow design.

  • weatherproof

    Premium Weatherproof Casing

    The elegant casing gives a sleek, premium feel resistant to weather, UV and corrosion.

video poster image

InverElite-noise-compare-chart-text-outlineExtreme silence

Thanks to Madimack’s Sound Suppression Technology, the sound level of InverELITE V2 can be as low as 45.5 dB(A) at 10 ft distance. Whisper quiet!

InverElite-noise-compare-chart-new



Powered by inverMAC technology

Stepless DC Inverter allows full control over the speed of both the compressor and fan motor. The smart control system will adjust the heating capacity automatically to satisfy the actual demand of the pool.

illustration-energy-saving-lrg

Double Energy Saving

At the beginning of the pool season, InverELITE V2 will run at full speed to heat up the pool rapidly. Once pool temperature is getting close to set point, InverELITE V2 automatically adjusts to lower speed, offering more efficient and quiet operation.

illustration-cop-lrg

Cop Up To 14.6

With COP of 15 at low speed to maintain pool temperature, InverELITE V2 can get 150,000 BTUs of heat output for every 10,000 BTUs consumed.

illustration-mode-lrg

Heating & Cooling

InverELITE V2 can heat up your pool or cool it down to the set temperature. Don’t let the weather stop you from enjoying your swimming pool.

  • soft-start

    Soft Start

    InverELITE V2 will start from 0 amps and increase steadily protecting electrical systems.

  • temperature-1

    Operation down to 14°F (-10°C)

    Built to operate in the coldest weather and extend your pool season into the winter.

  • wifi

    Built-in Wi-Fi

    Built-in Wi-Fi and smart app provides convenience to control your heat pump on-the-go.

  • defrost

    Smart & Quick Defrosting

    InverELITE V2 is equipped with reverse cycle defrosting. It will detect frost accumulation during operation and automatically switch to defrosting mode.

Advanced Features & Benefits

  • compressor

    Twin-rotary Compressor

    Significantly reduced operating noise

  • eev

    Electronic Expansion Valve

    Optimized flow of refrigerant 20% higher COP

  • heat-exchanger-2

    Twisted Titanium Heat Exchanger

    Increased area for heat exchange 40% higher efficiency

Get in touch

Complete the contact form and a Madimack team member will be in touch. Don't forget to review the full suite of products and services on our website www.madimack.com/us
View Brochure
Download Manual
Model ISA900 ISA1100
PERFORMANCE CONDITION: Air 80°F/ Water 80°F/ Humidity 80%
Heating capacity 90,000 BTU 110,000 BTU
COP Range 15.2 - 6.9 14.8 - 6.6
PERFORMANCE CONDITION: Air 80°F/ Water 80°F/ Humidity 63%
Heating capacity 83,500 BTU 99,500 BTU
COP Range 13.7 - 6.3 13.4 - 6.0
PERFORMANCE CONDITION: Air 50°F/ Water 80°F/ Humidity 63%
Heating capacity 54,500 BTU 67,500 BTU
COP Range 7.4 - 5.4 7.2 - 5.2
TECHNICAL SPECIFICATIONS
Advised pool volume* 28,000 gallons 32,000 gallons
Operating air temperature 14 - 109 °F
Technology lnverPad™
Compressor Mitsubishi Twin-Rotary DC Compressor
Heat exchanger Twisted Titanium Heat Exchanger
Power supply 208V - 203V / 1PH / 60Hz
Water connections 2.0 in / 60.3mm
Rated input power at Air 80°F 0.69 - 3.82 kW 0.88 - 4.88 W
Rated input current at Air 80°F 3.00 - 16.61 A 3.82 - 21.22 A
Sound level at 10ft 30.8 - 44.5 dB(A) 32.1 - 45.4 dB(A)
Advised water flux 125 - 158 L/min 133 - 167 L/min

Remarks: The data above is for reference only. For more specific data, please refer to the nameplate of the unit. *Recommended volume applied for a pool with isothermal cover.


Dimension

Model Packing Dimension (mm) Weight (kg)
Gross/Net
All models 1060 *430 *957 15/11

InverElite-dimension

View Brochure
Model ISA900 ISA1100
PERFORMANCE CONDITION: Air 80°F/ Water 80°F/ Humidity 80%
Heating capacity (BTU) 90,000 110,000
Heating capacity (KW) 26 32
COP Range 15.2 ~ 6.9 14.8 ~ 6.6
PERFORMANCE CONDITION: Air 80°F/ Water 80°F/ Humidity 63%
Heating capacity (BTU) 83,500 99,500
Heating capacity (KW) 24 29
COP Range 13.7 ~ 6.3 13.4 ~ 6.0
PERFORMANCE CONDITION: Air 50°F/ Water 80°F/ Humidity 63%
Heating capacity (BTU) 54,500 67,500
Heating capacity (KW) 16 20
COP Range 7.4 ~ 5.4 7.2 ~ 5.2
TECHNICAL SPECIFICATIONS
Operating air temperature (°F) 14 ~ 109
Operating air temperature (°C) -10 ~ 42
Heat exchanger Twisted Titanium Heat Exchanger
Power supply 230V/1 Ph/60Hz
Water connection (mm)/(inch) 60.3mm/2"
Rated input power at air 80°F (kW) 0.69 ~ 3.82 0.88 ~ 4.88
Rated input power at air 80°F (BTU) 2400 - 13000 3000 - 16500
Rated input current at air 80°F (A) 3.00 ~ 16.61 3.82 ~ 21.22
Maximum input current (A) 25.0 33.0
Sound level at 10ft dB(A) LP 30.8 ~ 44.5 32.0 ~ 45.4
Advised water flux (L/min) 83 ~ 116 118 ~ 152
(GPM) 21.9 ~ 30.6 31.2 ~ 40.2
Net dimension LxWxH (mm) 1060 × 430 × 957 1314 × 512 × 957
(inch) 41.7" × 16.9" × 37.7" 51.7" × 20.2" × 37.7"
Net Weight (kg) 95 125
(lb) 209 275.0

*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE PLEASE SEE DATA PLATE ON PRODUCT FOR SPECIFIC SPECIFICATIONS.

*Unless purchased through a Certified Madimack Online Dealer, product warranties revert to statutory 12 month warranty. Refer to Madimack website for list of Certified Online Dealers in order to secure expert service & support of Madimack products.


InverElite-dimension
