Multi-Stage Filtration. Uncompromising Clarity.

Advanced cartridge filtration with no backwashing, less maintenance, and exceptional water clarity.

Engineered For High Performance

The eliteCLEAR Quad multi-element cartridge filter is engineered for high-performance pool filtration, delivering exceptional water clarity with fewer cleanings and maximum reliability.

Featuring advanced filtration technology and 430 sq.ft. of filtration area, the filter's compact, user-friendly design provides efficient debris and particle capture without the need for backwashing. Enjoy cleaner, clearer, and more balanced pool water with minimal maintenance.

  • icon-skin-hydration

    Filtration Area

    430 sq.ft.

  • icon-high-flow

    Max Flow Rate

    150 GPM / 568 LPM

  • icon-pressure-rating

    Max Operating Pressure

    50 PSI

  • icon-durable-build

    Built to last

    UV-resistant plastic tank with cylindrical weatherproof rounded top and 3-in-1 heavy-duty clamp kit.

  • icon-handling

    Convenient handling

    Easy-grip handles for effortless portability and installation.

  • icon-eco

    Eco-friendly solution

    No backwashing required, saving water and energy.

  • icon-water

    High flow, multi-element

    Enormous surface areas for superior dirt capture and water clarity.

  • icon-service-friendly-design

    Minimal maintenance

    Longer filtration cycles delivering consistently clear pool water. Cartridge cleaning is all that’s needed.

eliteCLEAR Quad vs. Traditional Sand Filters


Feature Traditional Sand Filter eliteCLEAR Quad
Filtration Method Sand media filtration Multi-element cartridge filtration
Water Clarity Less effective on fine particles Captures finer particles for clearer water
Backwashing Required Yes No
Water Usage Water lost during backwashing Conserves water by eliminating backwashing
Maintenance Regular backwashing and media maintenance Periodic cartridge cleaning
Filtration Area Typically lower filtration surface area 430 sq. ft. filtration area
Operating Efficiency Performance can reduce as sand ages High-flow design supports efficient circulation
Environmental Impact Higher water consumption Reduces water waste
Equipment Protection Basic filtration protection Helps reduce debris entering the circulation system
Pool Owner Experience More frequent maintenance requirements Cleaner water with less routine maintenance

Madimack - Find Out More

FAQ's

What makes the eliteCLEAR Quad Cartridge Filter different from other filters?

The eliteCLEAR Quad Cartridge Filter features four internal filter cartridges that provide a larger filtration area compared to a single cartridge design. This helps capture more dirt and debris, supports consistent water flow, and can reduce how often the filter requires cleaning.

Does this filter require backwashing?

No. The eliteCLEAR Quad Cartridge Filter does not require backwashing, which helps simplify maintenance.

How often do I need to maintain or clean the filter?

eThe filter should be cleaned when the pressure gauge indicates it's time. The pressure gauge includes Clean; and Dirty markers, making it easy to see when maintenance is required. It‘s recommended to clean the filter once the pressure has increased by approximately 70 kPa above the clean starting pressure.

Regularly checking the pressure gauge is the easiest way to ensure your filter continues to operate efficiently and maintain optimal water quality.

Is this filter suitable for new pool installations and upgrades?

Yes. It can be used for both new pool setups and as a replacement or upgrade for existing systems.

Is it difficult to install or use?

No. It is designed for straightforward installation and simple everyday use, making it practical for both installers and pool owners.

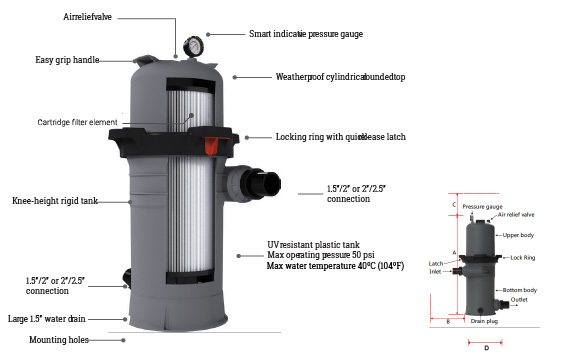

View Brochure icon View Brochure
Model Connection Ports
(in / mm)		 Filter Area
(ft2 / m2)		 Maximum Flow Rate
(GPM / LPM/ m3/h)		 Flow Velocity
(gpm/ft2) / (m3/h/m2)		 Max Operating Pressure
(PSI / kPa)
EliteClear Quad Cartridge Filter 430 40/ 1.5" - 50/ 2.0" 430/ 39.95 150/ 568/ 150 0.852/ 0.349 50/345

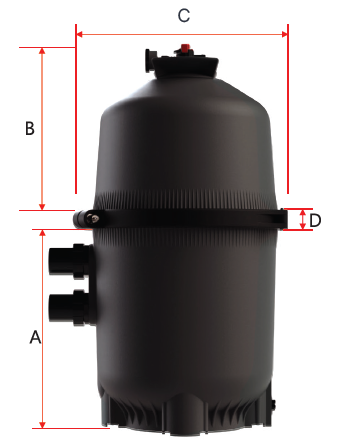

Dimensions
A (IN/CM) 20.9/ 53
B (IN/CM) 18/ 45.6
C (IN/CM) 23.7/ 60.2
D (IN/CM) 1.91/ 4.85
