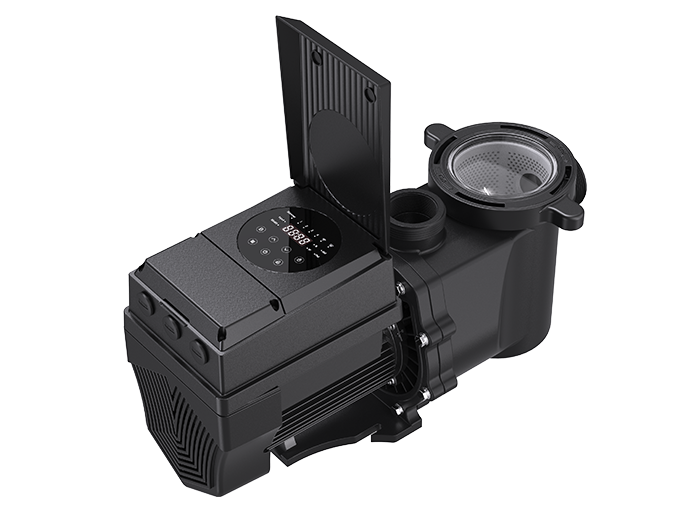

The Next Evolution in Pool Pump Peformance
Madimack’s inverFLOW Plus V2 builds on the trusted performance of the original, delivering the next evolution in reliability, efficiency and smart pool pump technology. Backed by an industry-leading 5-year warranty, this variable speed inverter pump offers exceptional energy savings, whisper-quiet operation and intelligent features designed for years of dependable performance.
Enjoy enhanced convenience with skimmer mode, WiFi remote control and a compact, space-saving design. Retrofit-ready for most major brands, the inverFLOW Plus V2 seamlessly integrates with existing plumbing, requiring no additional pipework for installation.
-
InverMAC Technology
Proprietary inverter system, continuous motor speed optimisation
-
DC Brushless Permanent Magnet Motor
Long-life, high-efficiency motor
-
Dual Voltage (90–250V)
Single SKU covers 115V and 230V; no hardware change required
-
Advanced Sound Suppression Technology
Quiet operation down to 33 dB
-
4 Daily Programmable Timers
Multi-speed, multi-timer via panel or app
-
Skimmer/Boost Mode
Surface cleaning optimization, 5-min burst every hour
-
Active Energy Monitor
Real-time power consumption display
-
WiFi Connectivity
App control, remote scheduling, real-time monitoring
-
Digital Input (DI) + RS485
External automation integration
-
Loss of Prime / Low Flow Protection
Automatic shutdown on unsafe conditions
-

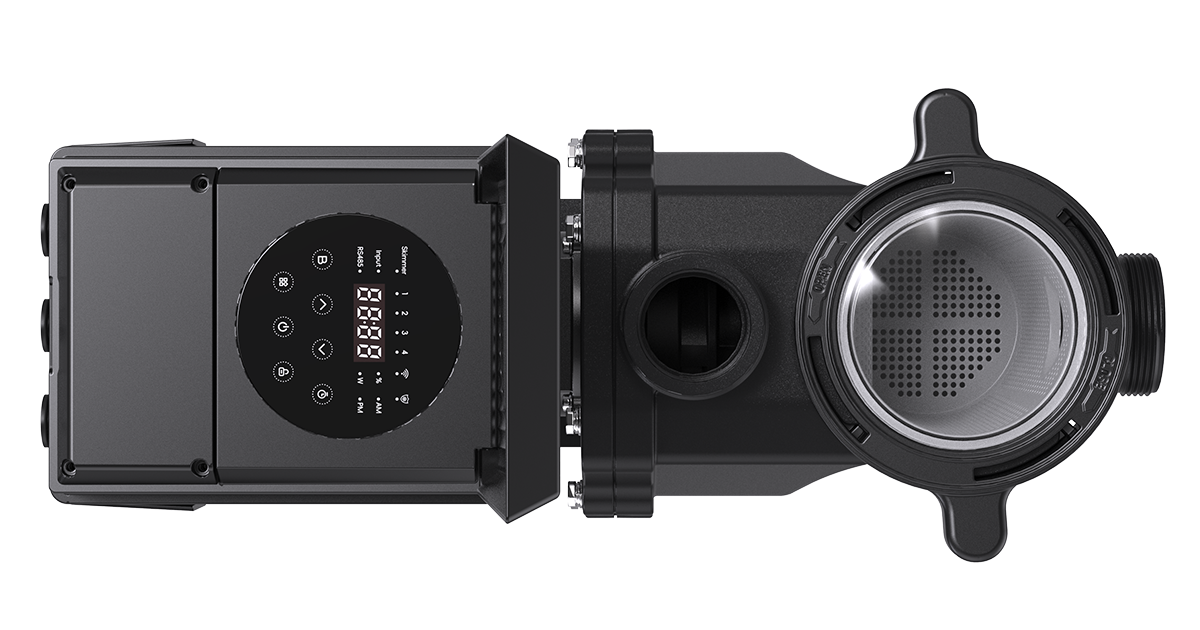

Transparent Strainer Lid
Tool-free basket inspection
-
5-Year Warranty
Parts and labour
Contact a local authorised Madimack dealer to find out more on the InverFLOW Plus V2
Fill out our contact form and a member of our dealer support team will reach out to you shortly!
| MODEL | InverFlow Plus 1 HP Dual Voltage Inverter VSP | InverFlow Plus 1.5 HP Dual Voltage Inverter VSP | InverFlow Plus 2 HP Dual Voltage Inverter VSP |
|---|---|---|---|
| Power | |||
| Voltage range | 90-250v 50/60hz | 90-250v 50/60hz | 90-250v 50/60hz |
| Total Horse Power (THP) | 1 | 1.5 | 2 |
| Input kilowatt (kW) | 1 | 1.35 | 1.8 |
| Running Amps (115v/230v) | 8.3 - 4.6 | 8.9 - 5.9 | 9.6 - 6.5 |
| Flow | |||
| Qmax - GPM | 112 | 125 | 136 |
| Qmax L/Min | 424 | 473 | 515 |
| Hmax - Feet | 59 | 65 | 67 |
| Hmax - Metre | 18 | 20 | 20.4 |
| Flow @ 26Ft (GPM) | 97 | 119 | 132 |
| Flow @ 8m (L/min) | 367 | 450 | 500 |
| Flow @ 33Ft (GPM) | 79 | 105.7 | 123 |
| Flow @ 10m (L/min) | 300 | 400 | 466 |
| Specifications | |||
| Dimensions (Inch) | 21” 7/16’ x 6” 5/8’ x 9” 15/16’ | ||
| Dimensions (mm) | 590 x 255 x 325 | ||
| Packaging (inch) | 23" 1/4' x 10" x 12" 3/4' | ||
| Packaging (mm) | 590 x 255 x 325 | ||
| Weight (lbs) | 32lb | 32lb | 34lb |
| Weight (kg) | 14.5kg | 14.5kg | 15.5kg |
| Pipe connections (inlet/outlet) | 2" BSP | ||
| Noise level 30% Speed | 32.9 | 35.8 | 38.3 |
| Noise level 100% Speed | 56.1 | 56.7 | 57.4 |
*Specifications displayed refer to 230v supply and can vary with voltage fluctuations please visit www.madimack.com for further specifications.
