POWERFUL PERFORMANCE.
EFFICIENT OPERATION.

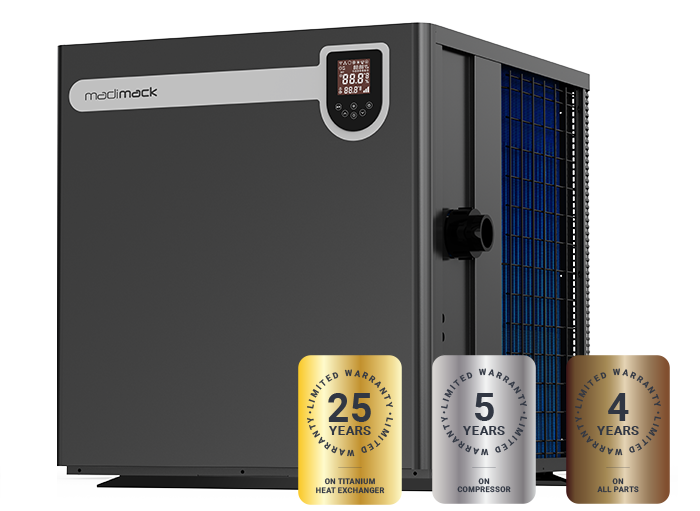

hero-inverEclipse-plus-AU-w-badges

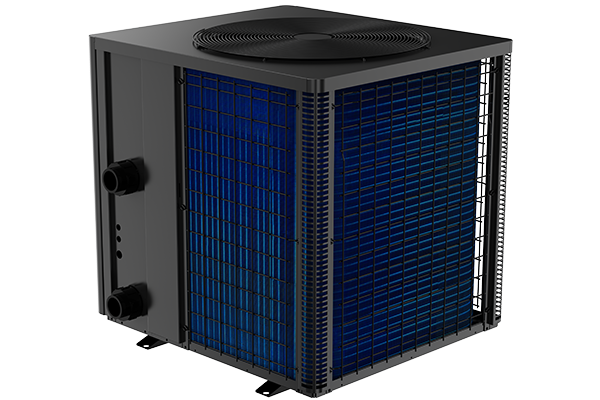

Designed and engineered to meet the highest requirements for cooling and heating options, with full inverter compressor and top discharge fans for a streamlined efficient air flow; rest assured that you own the latest eco friendly technology. Enjoy new possibilities for pool heating and cooling with the space saving and slick design. Limited space is no longer a concern

Calculate your heater size
  • heat-and-cool

    Engineered design & quality

  • Designed and Engineered for Australian conditions
  • Market leader in heat pump technology
  • high quality componentry and heat exchanger for any chemical balance
  • icon-install-2

    Installation flexibility

  • Small footprint and corrosion resistant casing for high salt areas
  • Active defrost function to assist operations in cold climates
  • Operates in cold climates down to minus 10°C
  • monitor-1

    Powered by InverMAC Technology

  • Energy efficient operation saves up to 66% compared to other forms of pool heating
  • Renewable energy compatible
  • High efficiency inverter technology

Madimack’s enhanced inverter technology, InverMAC, is engineered to support inverter motor operation. The inclusion of product specific proprietary technology allows for precise control of motor speed and energy usage across our range. InverMAC technology supports Madimack’s overall position of unrivalled innovation, sustainability and performance. By incorporating inverter motor technology in creative and unique ways, Madimack is leading the way in the development of energy-efficient products.

FEATURES

  • icon-soft-start

    Soft Start

    InverECLIPSE Plus will start from 0 amps and increase steadily protecting electrical systems

  • icon-temperature

    Operation down to -10°C

    Built to operate in the coldest weather and extend your pool season into the winter

  • icon-wifi

    Built-in Wi-Fi

    Built-in Wi-Fi and smart app provide convenience to control your pump on-the-go

  • icon-compressor

    Full Stepless DC Compressor

    Significantly reduced operating noise

  • icon-eev

    Electronic expansion valve

    Optimised flow of refrigerant 20% higher COP

  • icon-heat-exchanger

    Twisted titanium heat exchanger

    Increased area for heat exchange 40% higher efficiency

  • icon-defrosting

    Smart & quick defrosting

    InverECLIPSE Plus is equipped with reverse cycle defrosting detecting frost accumulation during operation and automatically switch to defrosting mode

Receive an instant, tailored, heating analysis for your aquatic set up, by completing this form
Model ETD+ 160 ETD+ 210 ETD+ 260
PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80%
Heating capacity (kW) 16.5 21.0 26.0
COP Range 15.2 ~ 7.2 15.9 ~ 7.0 15.0 ~ 6.9
PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70%
Heating capacity (kW) 11.7 15.1 18.6
COP Range 7.2 ~ 5.1 7.8 ~ 5.0 7.5 ~ 4.8
PERFORMANCE CONDITION: Air 35°C/ Water 28°C/ Humid. 80%
Cooling capacity (kW) 7.3 9.0 11.2
TECHNICAL SPECIFICATIONS
Temperature set point range (°C) 12 ~ 40
Operating air temperature (°C) -10 ~ 43
Compressor Full Stepless DC Compressor
Casing Marine Grade Aluminum Alloy
Heat exchanger Twisted Titanium Heat Exchanger
Power supply 240V 1Ph
Electrical connection 15A plug Hard wired
Rated input power (kW) 0.38 ~ 2.33 0.45 ~ 3 0.84 ~ 3.91
Rated input current (A) 1.66 ~ 10.1 1.96 ~ 13 3.65 ~ 17
Maximum input current (A) 13.5 17 20
Sound level at 1m dB(A) 41.2 ~ 54.9 42.8 ~ 54.7 41.5 ~ 55.2
Sound level at 10m dB(A) 21.2 ~ 34.9 32.8 ~ 34.7 31.5 ~ 35.2
Advised water flow (L/Min) ±20 100 125 150
Water connection (mm) 40
Net weight (kg) 70 77 88
Net dimension L x W x H (mm) 780x710x656 780x710x656 780x710x756

* The data above is only for reference. For specific data, please refer to the nameplate on the unit.
