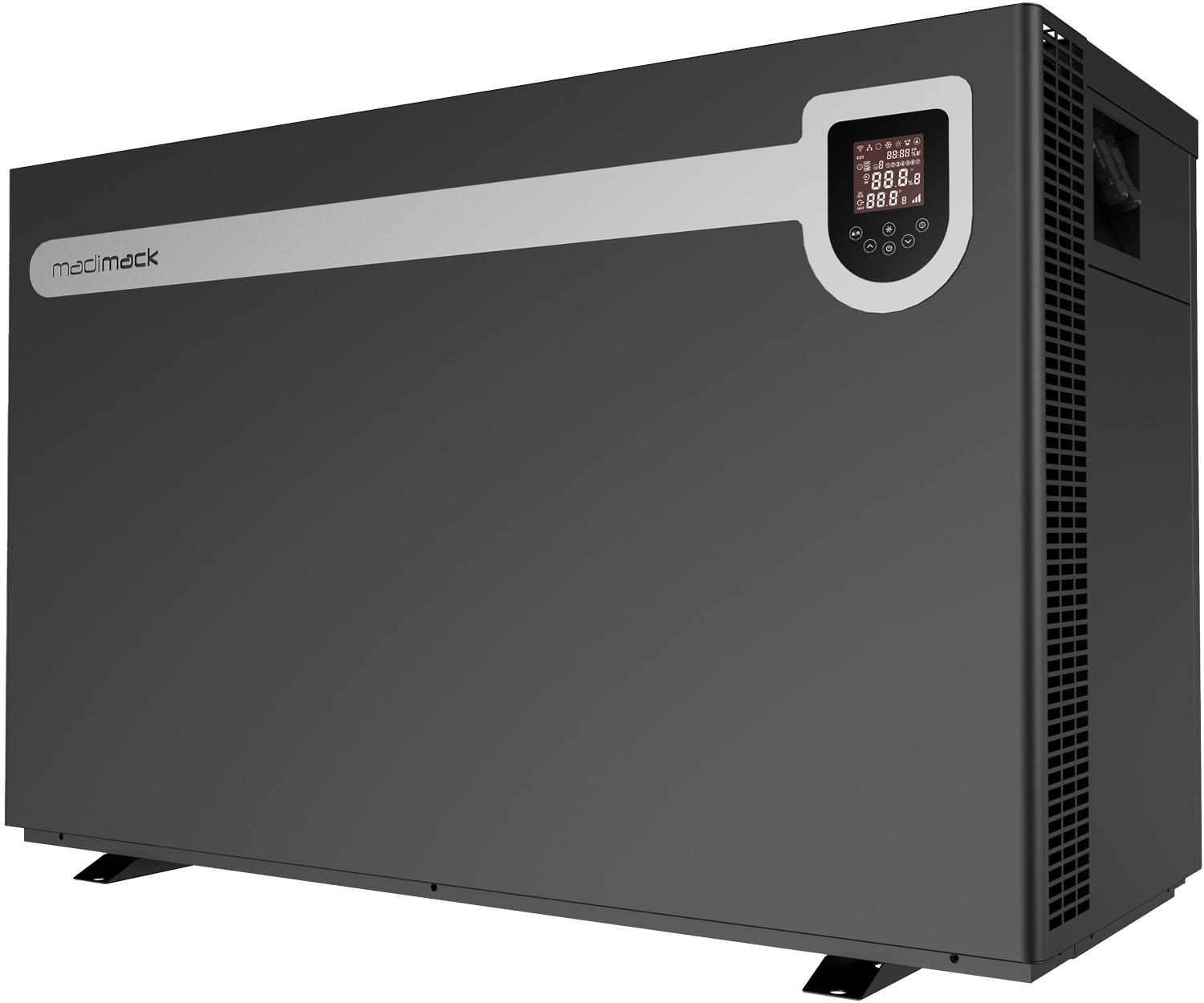

InverELITE v4 Pool Heating

Finely engineered design enhancements providing significant advancements in performance and resulting in a world best COP of 22.

COP is the industry standard for measuring the efficiency of heat pumps. It represents the relationship between the heat generated and the power used to generate it. Essentially, the higher the COP the more efficient the unit.

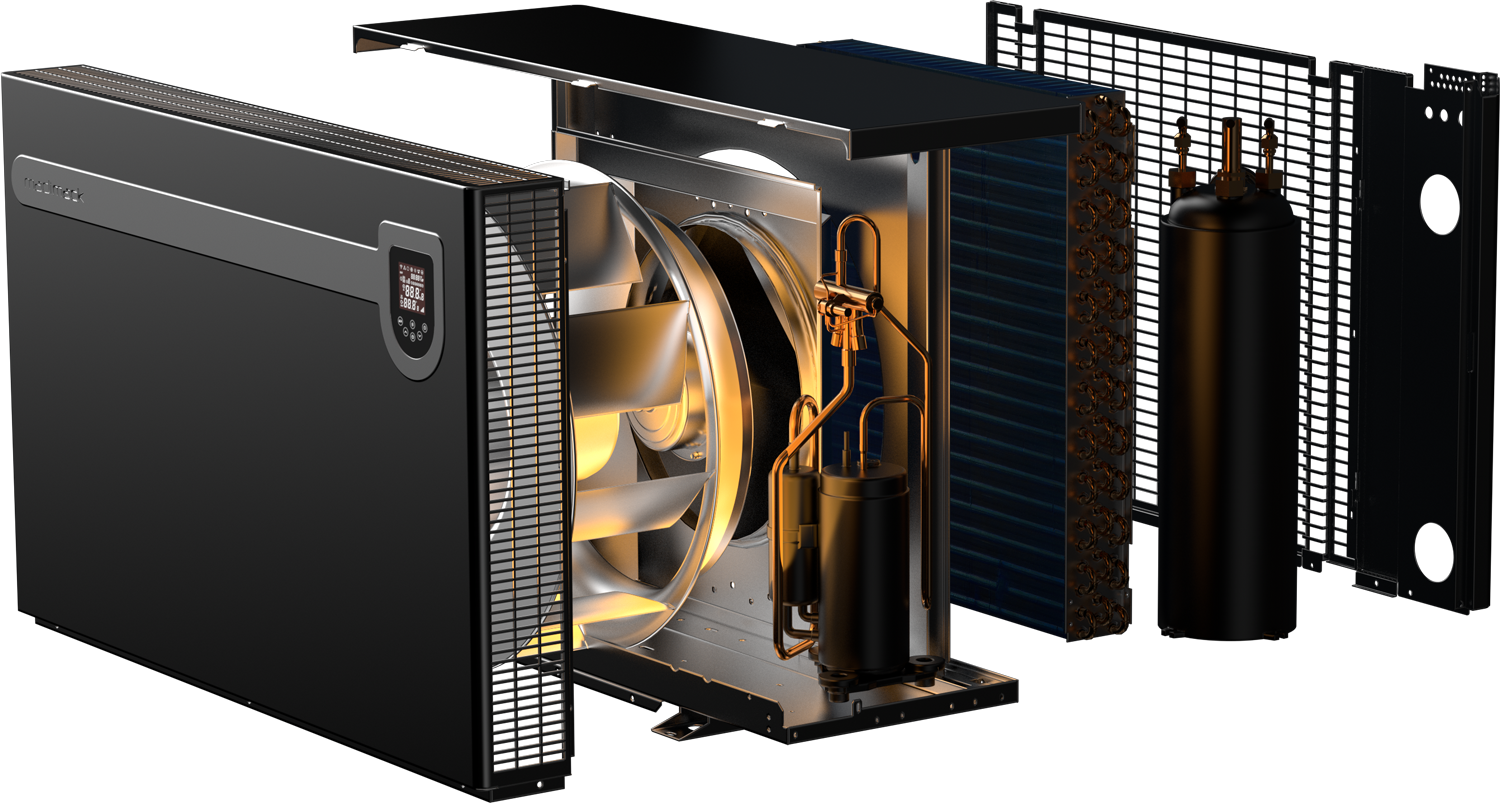

Triple layered sound insulation, commercial grade centrifugal fan, a revolutionary 3-Directional airflow, premium twin rotary compressor and three internal reflectors have joined forces to make Madimack’s InverELITE V4 the world’s most efficient, quietest, best performing pool heat pump.

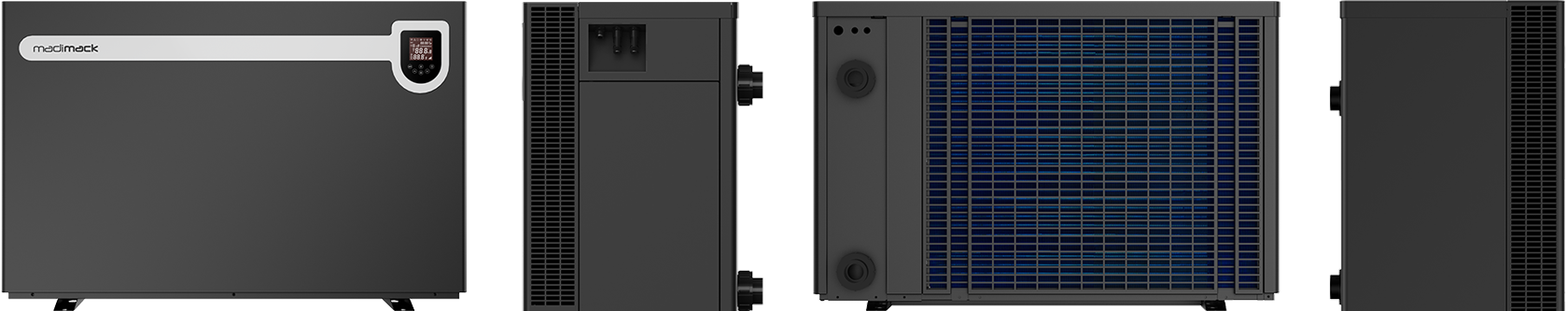

product
video poster image
banner-3d-airflow

3D Airflow

The V4 provides the world's first 3 directional ventilation.

In a revolutionary step for pool heating and cooling solutions, Madimack engineers crafted ventilation design that reduces ventilation requirements, simplifies installation requirements and enhances operation efficiencies significantly.

banner-compressor

Twin Rotary Compressor

The V4 has the fastest heat-up times of any pool heat pump.

High-grade componentry such as a twin rotary compressor and commercial grade centrifugal fan contribute to the outstanding Power to Performance ratio delivered by the V4.

eDM1 BodyBanners_InverELITE V4_4

Commercial Grade Centrifugal

Design enhancements such as the inclusion of a commercial grade centrifugal fan underpins the outstanding delivery of efficiency, sound & performance.

Triple layered sound insulation

The V4 is the quietest heat pump in the world. Its finely engineered design includes 3 layers of insulation (condensed fibre, foam and metal jacket),resulting delivering an almost silent experience.

  • icon-warranties

    Premium Materials

    The V4 is protected by an anti-corrosive, marine grade, aluminium alloy metal jacket to ensure it withstands nature’s elements in all climates.

  • icon-check

    Quick Connect

    External plugs for easy access and less intrusive access to the heat pump to simplify installation and provide additional control. It is the only heat pump available with external universal controls. It is universal because multiple devices can be used and connect into them. The connectors come pre-fitted to the heater and require manual wiring.

  • ico-cop22

    COP22

    COP is the industry standard of efficiency in heat pump technology (coefficient of performance). Madimack’s V4 offers an unrivalled COP of 22

  • icon-warranties

    Market Leading Warranties

    7 year All Parts
    15 year Compressor
    25 year Heat Exchanger

  • icon-heat-exchanger

    Heat Exchanger

    Extracts heat from the air efficiently.

  • icon-panel-control

    Display Screen

    Madimack’s V4 display screen contains additional features and allows for simplified user controller & operation.



Find Out More: InverELITE V4
Model V4-100 V4-120 V4-140 V4-170 V4-190 V4-230 V4-270 V4-330 V4-410
HPELV4AU100 HPELV4AU120 HPELV4AU140 HPELV4AU170 HPELV4AU190 HPELV4AU230 HPELV4AU270 HPELV4AU330 HPELV4AU410
PERFORMANCE CONDITION: Air 27°C / Water 27°C / Humid. 80%
Heating capacity (kW) 9.8 11.8 14.2 17.0 19.0 23.0 27.0 33.0 40.8
COP Range 19.5~7.0 19.7~7.2 20.2~7.2 20.4~7.2 20.0~7.0 22.0~7.3 21.0~7.2 20.3~7.1 18.9~7.0
PERFORMANCE CONDITION: Air 15°C / Water 26°C / Humid. 70%
Heating capacity (kW) 6.8 8.1 9.6 11.5 13.0 15.0 18.5 22.7 29.0
COP Range 7.6~5.1 8.1~5.2 8.5~5.1 9.0~5.3 7.9~5.0 9.6~5.6 8.9~5.2 8.0~5.2 7.8~5.0
PERFORMANCE CONDITION: Air 35°C / Water 28°C / Humid. 80%
Cooling capacity (kW) 4.8 5.5 6.7 9.4 10.8 11.9 13.5 15.4 20.0
TECHNICAL SPECIFICATIONS
Temperature set point (°C) 5~40
Operating air temperature (°C) -20~43
Casing Aluminum-alloy
Power supply 230V/1Ph 400V 3Ph
Compressor Twin-Rotary Mitsubishi DC Compressor
Electrical connection 10A plug 10A plug 10A plug Hard wired Hard wired Hard wired Hard wired Hard wired Hard wired
Rated input power (kW) 0.16~1.33 0.19~1.56 0.23~1.88 0.26~2.17 0.31~2.6 0.32~2.68 0.43~3.56 0.52~4.37 0.70~5.80
Rated input current (A) 0.70~5.78 0.83~6.78 1.0~8.17 1.13~9.43 1.35~11.3 1.39~11.65 1.87~15.48 2.26~19.0 1.01~8.41
Maximum input current (A) 9.0 10.0 10.0 16.0 16.5 18.5 20.5 24.0 12.5
Sound level at 1m dB(A) 36.0~41.8 36.0~42.5 36.3~43.9 37.2~45.5 37.5~46.0 37.6~46.8 37.9~48.2 38.2~48.7 38.8~49.3
Sound level at 10m dB(A) 16.0~21.8 16.0~22.5 16.3~23.9 17.3~25.5 17.5~26.0 17.6~26.8 17.9~28.2 18.2~28.7 18.8~29.3
Advised water flow (L/min) ±20% 50 65 70 85 100 135 140 180 220
Water Pressure Drop (kpa) 4 4 5 6 7 8 12 16 22
Gas R32
Water connection (mm) 40
Net weight (kg) 83 83 83 90 94 100 125 154 186
Gross Weight (kg) 92 92 92 100 104 112 148 181 216
Net dimension LxWxH (mm) 936*494*655 936*494*655 936*494*655 1036*494*655 1036*494*655 1104*494*757 1129*504*945 1310*514*945 1405*514*1070
Packaging dimension LxWxH (mm) 1005*550*685 1005*550*685 1005*550*685 1105*550*685 1105*550*685 1175*550*785 1198*560*985 1380*560*985 1475*560*1105

* The data above is only for reference. For specific data, please refer to the nameplate on the unit.
* Acoustic data is to TuV international testing conditions, site conditions may differ.
