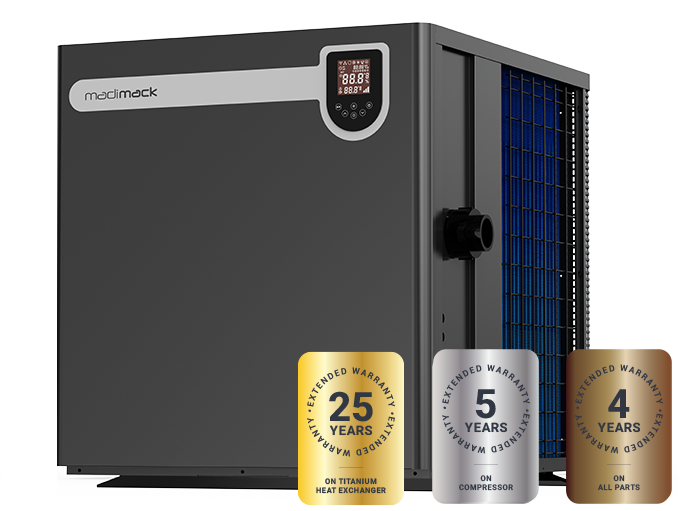

ECLIPSE POOL HEATING RANGE

Powerful heating & cooling pool heating series with top discharge outlet for installation versatility.

hero-inverEclipse-rating-no-warranty-badges

Designed and engineered to meet the highest requirements for cooling and heating options, with full inverter compressor and top discharge fans for a streamlined efficient air flow; rest assured that you own the latest eco friendly technology. Enjoy new possibilities for pool heating and cooling with the space saving and slick design. Limited space is no longer a concern

Calculate your heater size
  • Designed and Engineered for Australian conditions
  • Market leader in heat pump technology
  • high quality componentry and heat exchanger for any chemical balance
  • Small footprint and corrosion resistant casing for high salt areas
  • Active defrost function to assist operations in cold climates
  • Operates in cold climates down to minus 10°C
  • Energy efficient operation saves up to 66% compared to other forms of pool heating
  • Renewable energy compatible
  • High efficiency inverter technology

Madimack’s enhanced inverter technology, InverMAC, is engineered to support inverter motor operation. The inclusion of product specific proprietary technology allows for precise control of motor speed and energy usage across our range. InverMAC technology supports Madimack’s overall position of unrivalled innovation, sustainability and performance. By incorporating inverter motor technology in creative and unique ways, Madimack is leading the way in the development of energy-efficient products.

FEATURES

Receive an instant, tailored, heating analysis for your aquatic set up, by completing this form

Model ETD160 ETD210 ETD260
PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80%
Heating capacity (kW) 16.5 21.0 26.0
COP Range 15.2~7.2 15.9~7.0 15.0~6.9
PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70%
Heating capacity (kW) 11.7 15.1 18.6
COP Range 7.2~5.1 7.8~5.0 7.5~4.8
PERFORMANCE CONDITION: Air 35°C/ Water 28°C/ Humid. 80%
Cooling capacity (kW) 7.3 9.0 11.2
TECHNICAL SPECIFICATIONS
Operating air temperature(°C) -10 ~ 43
Compressor Full Stepless DC Compressor
Casing Marine Grade Aluminium Alloy
Heat exchanger Twisted Titanium Heat Exchanger
Power supply 240V 1Ph
Electrical connection 15A plug Hardwired
Rated input power (kW) 0.38~2.33 0.45~3 0.84~3.91
Rated input current (A) 1.66~10.1 1.96~13 3.65~17
Maximum input current (A) 13.5 17 20
Sound level at 1m dB (A) 41.2~54.9 42.8~54.7 41.5~55.2
Sound level at 10m dB (A) 21.2~34.9 32.8~34.7 31.5~35.2
Advised water flow (L/Min) ±20 100 125 150
Water connection (mm) 40
Net weight (kg) 70 77 88
Net dimension L x W x H (mm) 780x710x656 780x710x656 780x710x656
RRP Madimack pool heat pump price list

*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE PLEASE SEE DATA PLATE ON PRODUCT FOR SPECIFIC SPECIFICATIONS.

*Unless purchased through a Certified Madimack Online Dealer, product warranties revert to statutory 12 month warranty. Refer to Madimack website for list of Certified Online Dealers in order to secure expert service & support of Madimack products.
