A NEW STANDARD FOR POOL PUMPS

hero-inverFlow-Plus-w-badges-na

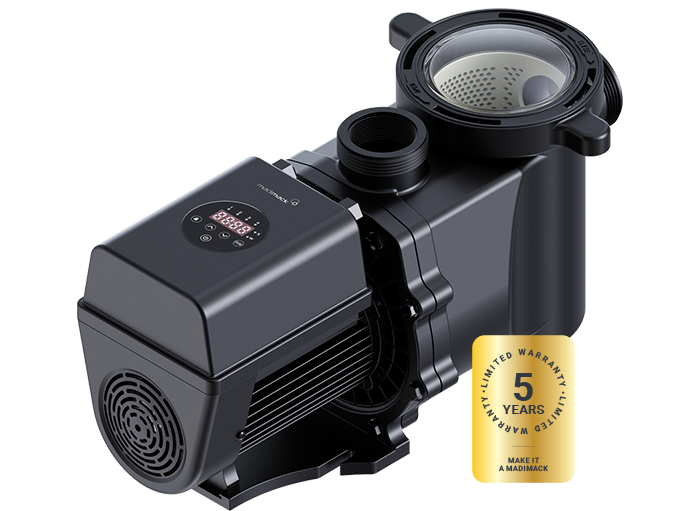

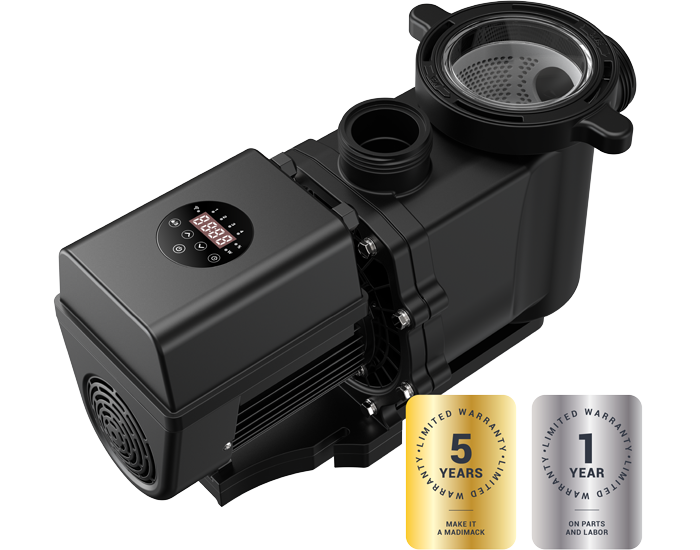

Madimack’s inverFLOW PLUS is the next evolution in pool pump technology, delivering enhanced power and superior performance alongside the energy-saving benefits of full-inverter technology.

Operating whisper-quietly at speeds as low as 33dB, it features Wi-Fi connectivity for effortless control, Skimmer Mode for a pristine pool surface, dual voltage compatibility, and a market-leading 5-year warranty. The inverFLOW PLUS sets a new benchmark in efficiency, reliability, and convenience.

video poster image

Indicative five year cost comparison

  InverFlow@4xInverFLOW Single speed pump@4xSingle speed pump Money Saved@4xMoney Saved
Approximate Retail Price $895 $700
Energy Cost $246 $937 $496
Total Cost Year 1 $1141 $1637
Energy Cost $246 $937 $1187
Total Cost Year 2 $1387 $2574
Energy Cost $246 $937 $1878
Total Cost Year 3 $1633 $3511
Energy Cost $246 $937 $2569
Total Cost Year 4 $1879 $4448
Energy Cost $246 $937 $3260
Total Cost Year 5 $2125 $5385

Disclaimer: Product price is indicative RRP only. Energy costs are based on a 50,000L pool running 8 hours per day with electricity pricing of 30c per kW.

Contact a local authorised Madimack dealer to find out more on the InverFLOW Plus

Fill out our contact form and a member of our dealer support team will reach out to you shortly!

MODEL InverFlow Plus 1 HP Dual Voltage Inverter VSP InverFlow Plus 1.5 HP Dual Voltage Inverter VSP InverFlow Plus 2 HP Dual Voltage Inverter VSP
Power
Voltage range 90-250v 50/60hz 90-250v 50/60hz 90-250v 50/60hz
Total Horse Power (THP) 1 1.5 2
Input kilowatt (kW) 1 1.35 1.8
Running Amps (115v/230v) 8.3 - 4.6 8.9 - 5.9 9.6 - 6.5
Flow
Qmax - GPM 112 125 136
Qmax L/Min 424 473 515
Hmax - Feet 59 65 67
Hmax - Metre 18 20 20.4
Flow @ 26Ft (GPM) 97 119 132
Flow @ 8m (L/min) 367 450 500
Flow @ 33Ft (GPM) 79 105.7 123
Flow @ 10m (L/min) 300 400 466
Specifications
Dimensions (Inch) 21” 7/16’ x 6” 5/8’ x 9” 15/16’
Dimensions (mm) 590 x 255 x 325
Packaging (inch) 23" 1/4' x 10" x 12" 3/4'
Packaging (mm) 590 x 255 x 325
Weight (lbs) 32lb 32lb 34lb
Weight (kg) 14.5kg 14.5kg 15.5kg
Pipe connections (inlet/outlet) 2" BSP
Noise level 30% Speed 32.9 35.8 38.3
Noise level 100% Speed 56.1 56.7 57.4

*Specifications displayed refer to 230v supply and can vary with voltage fluctuations please visit www.madimack.com for further specifications.
